Muse-Inwall-I Speaker




           Muse-Inwall-I is Mark & Daniel’s slim-designed, wall-mount (in-wall) speaker applicable for multi-channel audio and/or AV home theater sound systems; due to its high-end CAM (compound artificial marble) enclosure structure with elegant finish, it is also suitable for on-wall applications matching with your interior decoration.


inwall-1-01m.png    inwall-1-02m.png



       The Muse-Inwall-I speaker is useful for mid-to-large audition room applications, may be used as the left/right main channel and/or center channel speaker with outstanding high-fidelity performance, high C/P value, easy installation and economy properties as well.  Based on your space and playback SPL requirements, matching with one or two subwoofers (such as M&D’s Ultrumax-Sub-Ia), a high standard multi-channel audio system with full-scale frequency spectrum, loud and clear playback, and a very high dynamic sound stage may then be achieved.

*Ultrumax-Sub-Ia: http://www.mark-daniel.com/index.asp?ProID=115&table=pr



inwall-1-04m.jpg   inwall-1-10m.png

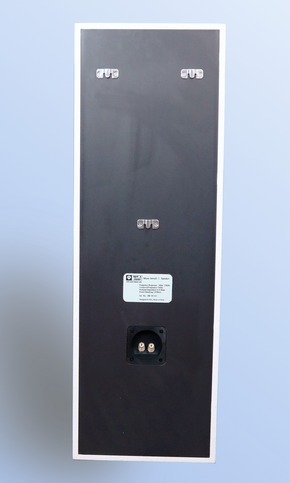

         The Muse-Inwall-I slim speaker has a thickness of 13cm (5.1 ").  On its back, there are three hook sets to ensure enclosure’s solid and vertical installation; each speaker also includes one perforated installation template which may be directly fixed/glued onto the wall, or punch in pencil to proper install the speaker onto desired position of the wall.  Muse-Inwall-I speaker has the following dimensions: H90cm x W30.0cm x D13.0cm (H35.4” xW11.8” xD5.1”); the enclosure with CAM solid surface + beveled edge design has been polished beautifully, also be able to moderately reduce the counteraction effect of the AMT wideband driver. This handmade enclosure of Muse-Inwall-I is quite solid and heavy; each speaker weighs 20.5 kg (45 lbs).

* CAM enclosure:http://www.mark-daniel.com/index.asp?ID=9&table=faq




         Muse-Inwall-I is a 2-way structured speaker. One M&D’s world leading DM-7b AMT wideband AMT driver has been installed on the middle of the speaker panel; this extraordinary DM-7b is a monitor-grade AMT driver build by a very large diaphragm from the 0.0125mm ultra-thin polyimide subtract which may cover a remarkable 5 octaves frequency ranges (from 750Hz up to 22KHz), be able to ensure the integrality of human sensitive hearing sector, and with a high-resolution, great sound dynamics playback capability that inherited from the AMT (air motion transformer) mode. All these characteristics are far more superior over the conventional tweeter drivers!

* DM7b AMT driver: http://www.mark-daniel.com/index.asp?Proid=28&table=sdr

* Hearing sensitive range: http://www.mark-daniel.com/index.asp?ID=16&table=Phylosophy



         On the other hand, two HX-6.5-0.4-4 (or the equivalent) woofers are installed for the bass reproduction, with good linear excursion and power handling capacity; In order to meet the high dynamic sound pressure (SPL) output requirements of a multi-channel audio playback system, Muse-inwall-I enclosure has a sealed design for woofers, the low frequency response is down to 50Hz and has a good Q damping factor for smoothly downward so be able a better match with the collaborated subwoofer(s).



         Muse-Inwall-I speaker has a higher 6-8 Ohms impedance characteristic over the conventional M&D speakers which can be better match with most of the multi-channel power amplifiers. An average system efficiency is 86dB/2.83V/1m with 120 watts power handling; high-quality power amplifier not less than 100 watts per channel is recommended to proper drive this speaker.


 inwall-1-03m.png   inwall-1-05m.png




★ Specifications

Product Description:  Muse-Inwall-I Speaker
Reference Price:  US$1,550/unit, for standard colors
Standard Colors:  - Solid White (Code: MD1002)
                              - Starry Black (Code: MD1423)
                             * Special colors are under request
Frequency Response:  50Hz-22KHz
Two-way Crossover:  750Hz
Nominal Impedance:  6-8 Ohms
Average Efficiency:  86 dB/2.83V/1m
Power Handling:  ≥120 Watts
Enclosure Material:  CAM solid surfacing
Enclosure Size:  H90 xW30.0 xD13.0 cm  (H35.4” xW11.8” xD5.1”)
Weight (each):  20.5Kg (45lb)
