Ultrumax-Sub-IIp

The Passive Super Bass Enclosures





¡ï Ultrumax-Sub-IIph:



         Conceived and shaped from Chinese ¡°Qin Dynasty¡± concept, the paired Ultrumax-Sub-IIph deep bass enclosures are not only the conventional passive-mode subwoofers but also can be used as a part of the main/left or main/right, full-spectrum floor-standing speakers for deep bass playback and to support Ultrumax high C/P value U-series speakers, including:

Ultrumax-U1p¡¢ Ultrumax-U2p¡¢Ultrumax-U2p-ST

on each enclosure¡¯s top in a same time. The application of Ultrumax-Sub-IIph is suitable for medium and large audition rooms.

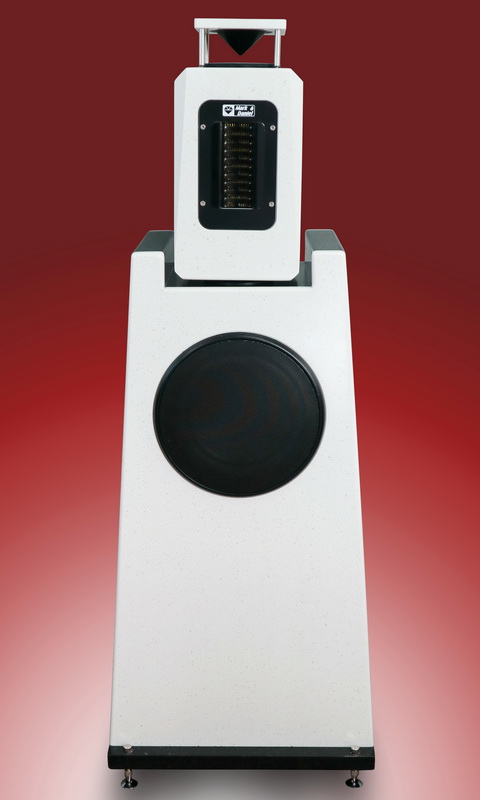

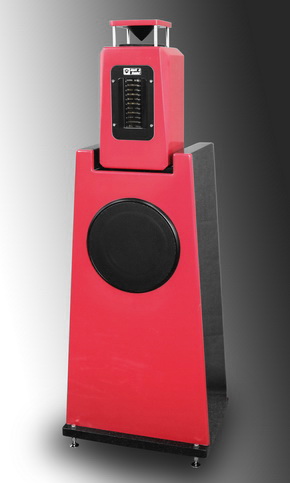

ultrumax-sub2-ph-11m.jpg    ultrumax-sub2-ph-3m.jpg



         Most of audiophiles must have his own carefully selected, personal favorite, and/or good quality/high priced amplifier(s) that they would like to keep when upgrading his speaker system. To meet the wishes of reserve existing equipment, to minimize investment cost, and to get an optimal result for best sound quality; there are some good reasons for M&D to develop his passive products for Ultrumax series therefore.



         Ultrumax-Sub-IIph¡¯s basic structure is identical with the Ultrumax-Sub-IIa enclosure except designed as a passive-mode deep bass speaker which can even improve for a deeper bass response over the active-mode enclosure. And for system optimization, the matched Ultrumax-U1p/U2p/U2p-ST passive speaker¡¯s crossover point has been raised from 200Hz up to 350Hz; to further optimize for a more balanced system performance and SPL output capability. The speaker terminal on the backside of enclosure has two sets of banana sockets, the lower LF +/- set is used to connect with power amplifier through a speaker cable, and the higher HF +/- set is to connect with Ultrumax-U1p, -U2p, or -U2-ST speakers through speaker cable.



         One HX-8.0-0.6 woofer driver weighting up to 2.3Kg and with the large Ø120x35mm magnets to yield a ¡À7.5mm (0.6¡±) high Xmax linear excursion capability is carefully selected for the Ultrumax-Sub-IIph. This woofer has been mounted on the enclosure front panel which can carry down to 33Hz (F3, -3dB) deep bass under the low distortion and high SPL characteristics.


ultrumax-sub2-ph-2m.jpg    ultrumax-sub2p-1m.jpg



         It is quite easy to proper place the Ultrumax-U1p/-U2p/-U2p-ST speakers firmly onto the -Sub-IIph enclosure¡¯s top.  First to insert the attached short metal bar into -Sub-IIph enclosure's top tray, then place Ultrumax-U1p/-U2p/-U2p-ST unit insert onto the metal bar through its bottom tray; please note that before the insertion, two industrial O-rings should be sleeved to the metal bar¡¯s two ends from about 1cm (0.4¡±) distance, then smoothly do the insertions to ensure a firm and steady installation for this Ultrumax floor-standing speaker system, as shown on the photo.



          This stylish -Sub-IIph enclosure is handmade by reinforced, low resonant CAM compound marble solid surface enclosure and has the following dimensions: W40 xD30 xH80cm (W15.7" xD11.8" xH31.5"). This enclosure structure is extremely strong and heavy, each -Sub-IIph enclosure weighs up to 34.5Kg (76 lb).



         The total height of this floostander as a whole when place Ultrumax-U1p on enclosure¡¯s top is 100cm (39.4¡±), the height is 115cm (45.3¡±) when connected with Ultrumax-U2p, and the height is up to 121cm (47.6¡±) when placed Ultrumax-U2a-ST on it.





¡ï Ultrumax-Sub-IIps:



         The paired Ultrumax-Sub-IIps deep bass enclosures with meticulously design are not the conventional passive-mode subwoofers but also can be used as a part of the main/left or main/right, full-spectrum floor-standing speakers for deep bass playback and as the flagship combination to support Ultrumax¡®s premium grade M-series monitor speakers, including:

Ultrumax-M1¡¢ Ultrumax-M1-ST

on each enclosure¡¯s top in a same time. The application of Ultrumax-Sub-IIps is suitable for medium and large audition rooms.



ultrumax-sub2-ps-8m.jpg   ultrumax-sub2-ps-6m.jpg


         This stylish design, handmade by reinforced low resonant CAM compound marble solid surface enclosure; Ultrumax-Sub-IIps is designed as the high-end version, passive-mode deep bass speaker among the Ultrumax subwoofer products that dedicated mainly to critical and demanded audiophiles.  The major difference in between -Sub-IIps and the above -Sub-IIph is, the Sub-IIps version has employed M&D¡¯s famous 8-inch Super Xmax woofer with exclusive patented SX (super linear excursion) technology plus its matching crossover network installed inside. The Ultrumax-Sub-IIps enclosure has therefore outstanding performance in the deep bass quality during sound reproduction and the ability to regenerate a very high SPL sound level to proper match with M&D¡¯s premium Ultrumax-M1 or -M1-ST monitor speakers.



         For system optimization, the matched Ultrumax-M1/M1-ST monitor speaker¡¯s crossover point has been raised from the original 190Hz up to 350Hz while connected with the -Sub-IIps enclosure in order to further improve for a balanced system performance and SPL output capability. The speaker terminal on the backside of enclosure has two sets of banana sockets, the lower LF +/- set is used to connect with your power amplifier through a speaker cable; and the higher HF +/- set with a matching network inside that be able to raise the crossover point from 190Hz up to 350Hz, is to connect with Ultrumax-M1, or -M1-ST monitors by a pair of speaker cable then.



         Ultrumax-Sub-IIps enclosure has carefully assembled one M&D¡¯s exclusive 3.5 Kg SX-8.0 eight-inch heavy bass driver on its panel. This SX8.0q-1.4 driver has an amazing Xmax linear excursion way up to ¡À18.0 mm, which can regenerate a true low frequency down to 30 Hz (-3dB, F3) with high bass quality and low distortion, as well as unparalleled powerful sound pressure so be able to meet the critical requirements from serious audiophiles, for medium to large audition rooms.



ultrumax-sub-ps10m.jpg    ultrumax-sub-ps9m.jpg


         It is quite easy to proper place the Ultrumax-M1/-M1-ST speakers firmly onto the -Sub-IIps enclosure¡¯s top.  First to insert the attached short metal bar into -Sub-IIps enclosure's top tray, then place Ultrumax-M1 or -M1-ST unit insert onto the metal bar through its bottom tray; please note that before the insertion, two industrial O-rings should be sleeved to the metal bar¡¯s two ends from about 1cm (0.4¡±) distance, then smoothly do the insertions to ensure a firm and steady installation for this Ultrumax floor-standing speaker system, as shown on the photo.



         This stylish -Sub-IIps has the following dimensions: W40 xD30 xH80cm (W15.7" xD11.8" xH31.5"). This enclosure structure is extremely strong and heavy, each -Sub-IIph enclosure weighs up to 36Kg (79lb). The total height of this floostander as a whole when place Ultrumax-M1 monitor on enclosure¡¯s top is 103cm (40.6¡±), and the height is up to 110cm (43.3¡±) when placed Ultrumax-M1-ST monitor on it.







¡ï  Product Specifications:

Product Name: Ultrumax-Sub-IIph, Passive Super Bass Enclosure

Reference Price: US$ 3,300/pair.

Frequency Response: 33Hz ¨C 350Hz

Nominal Impedance: 4 Ohms

Power Handling£º ¡Ý150 Watts

Standard Colors:    Phantom White (MD-1011) + Starry Black (MD-1423)

Enclosure Overall Size: W40 x D30 x H 80cm £¨W15.4¡±xD15.7¡±x14.6¡±£©

Enclosure Weight: 34.5kg (76lb)



Product Name: Ultrumax-Sub-IIps, Passive Super Bass Enclosure

Reference Price: US$ 4,000/pair.

Frequency Response: 30Hz ¨C 350Hz

Nominal Impedance: 4 Ohms

Power Handling£º ¡Ý150 Watts

Standard Colors:    Phantom White (MD-1011) + Starry Black (MD-1423)

Enclosure Overall Size: W40 x D30 x H 80cm £¨W15.4¡±xD15.7¡±x14.6¡±£©

Enclosure Weight: 36kg (79 lb)



* Remark:

For critical audiophiles in pursuit of ¡°absolute sound¡±, we recommend you to test and audition the perfect match:

Ultrumax-M1-ST + Ultrumax-IIps

this M&D¡¯s high-end and cost-effective combination, with its unparalleled sound quality, is capable to challenge any top-notch speakers to the market; and it is also a milestone to meet Mark & Daniel¡¯s definition and expectation of ¡°The Sound for Tomorrow¡± !
