Ultrumax-M1-ST

Monitor Speaker w/ Super Tweeter



- Ultrumax M1-ST

         Advertising hype pretty much match the reality. It is indeed an AMT the likes of which hasn’t been heard before… Treat this diva with respect and she won’t just sing but soar.

The M1-ST introduces the finest AMT Mark & Daniel have ever built and simply the most advanced driver of this kind on the planet…



https://6moons.com/audioreview_articles/ultrumax/

- Glen Wagenknecht / Reviewer / Canada -

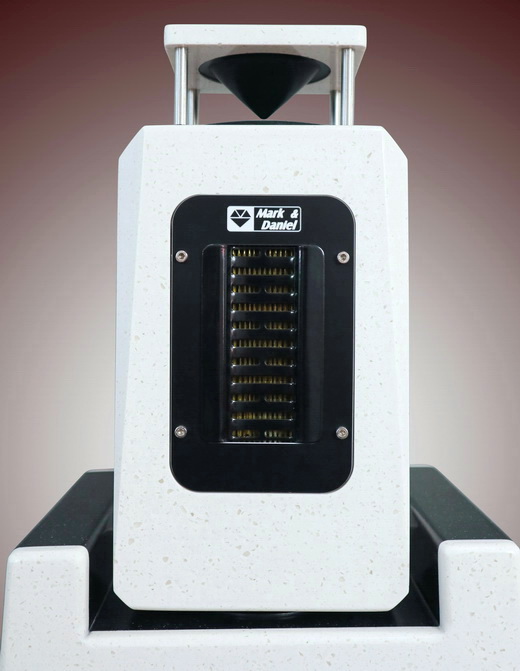

         The -M1-ST is the premium version of the Ultrumax-M1 monitor speaker; both the basic design and characteristics are similar except M&D’s famous Omni-Harmonizer feature has been integrated onto the top of the -M1-ST enclosure.

Ultrumax-M1:  http://www.mark-daniel.com/index.asp?ProID=120&table=pr



         It is the common characteristic for tweeter drivers that their emitting directivity will be sharper/narrower when playback for higher frequencies; people may feel the music some unnatural during audition. Add on the DM-6b AMT super tweeter + cone diffusor with omni-directional (360 degree) scattering; and it is purposely designed to respond only to musical High Frequency harmonics, from 7KHz up to 32KHz, the very high frequency band so it will not affect the positioning when music playback but be able to obtain a more vivid spatiality with the High Frequency harmonics by producing a certain proportion of indirectly HF reflections to the listener. This thereby achieves better acoustic spatiality in the very high frequency band and gains a lifelike ambiance.

* Omni-Harmonizer: http://www.mark-daniel.com/index.asp?ProID=113&table=pr



ultrumax-m1-st-5m.jpg   ultrumax-m1-st-4m.jpg



Speaker Installation:

For Ultrumax-M1-ST speaker, four installation options are provided:

-Standard bookshelf placement: -M1-ST speaker can be placed as the conventional bookshelf  speakers that directly on sound console, bookshelf, rack top, or on a speaker stand.

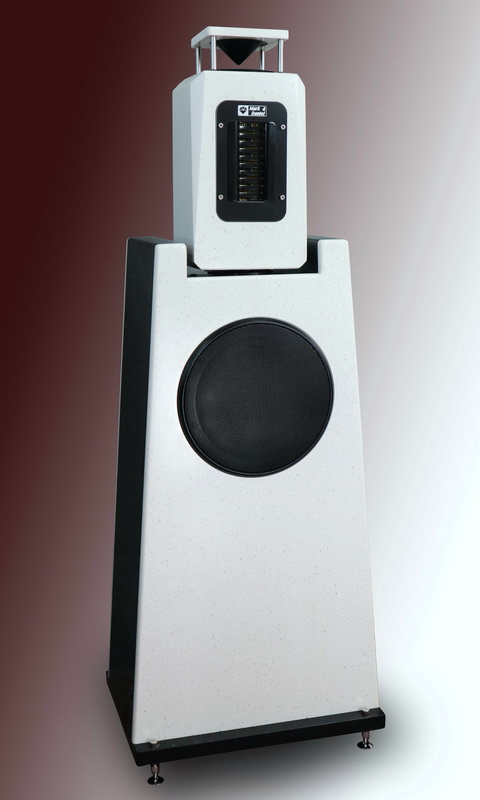

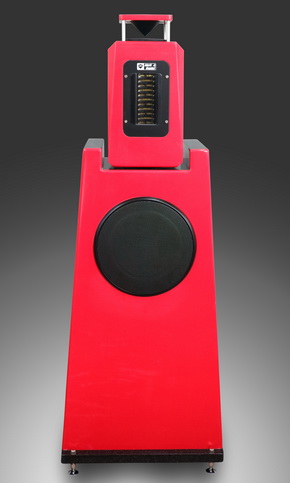

-Installed on Ultrumax-Stand: the total height of the system is 104 cm (40.9”, shown as the photo.

-Installed on Ultrumax-Sub-IIa active deep bass enclosure: the total height of the system is 110cm (43.3”).

-Installed on Ultrumax-Sub-IIps passive deep bass enclosure: the total height of the system is 114cm (44.9”) then.


ultrumax-m1-st-14-2m.jpg   ultrumax-m1-st-12-1m.jpg



And depending on your own sound system need, there are three M&D deep bass enclosures may be chosen to match with Ultrumax-M1-ST speakers:

- Ultrumax-Sub-Ia     (active mode, with one single independent sub-woofer)

- Ultrumax-Sub-IIa    (active mode, with one pair of deep bass enclosures)

- Ultrumax-Sub-IIps   (passive mode, with one pair of deep bass enclosures)





* Note: Proper Installation for the Cone Diffusor:


omni-41m.jpg  omni-42m.jpg


- Pick up the CAM diffusor then use a hexagonal wrench to slightly loosen the 4 screws on its top ① so the 4 stainless steel posts may be relax a bit ②

- Insert diffuser’s 4 posts properly into the 4-hole position on the Harmonizer’s top ③

- Firmly press the diffusor with one hand, then properly lock the 4 screws on its top plate with the hexagon wrench ④


omni-43m.jpg  Omni-44m.jpg

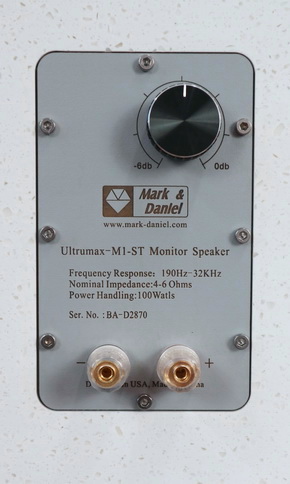

Specifications:

Product Description:  Ultrumax-M1-ST Monitor Speaker

Reference Price:  US$2,900/pair, for standard colors
Standard Colors:    Phantom White (Code: MD-1011)
                                - Starry Black (Code: MD-1423)
Freuency Response:  190Hz-32KHz

Nominal Impedance:  3-8 Ohms
Average Efficiency:  83dB/2.83V/1m
Power Handling:  100 Watts
Enclosure Material:  Handmade CAM solid surfacing
Enclosure Size:  H34.0 xW17.0 xD15.0cm (H11.0“ xW6.7” xD5.9”)
Weight (each):  8.0Kg (17.6 lb)



* Remark:

For critical audiophiles in pursuit of “absolute sound”, for general audition rooms we recommend you to test and audition the perfect match:

Ultrumax-M1-ST + Ultrumax-IIps

this M&D’s high-end and cost-effective combination, with its unparalleled sound quality, is capable to challenge any top-notch speakers to the market; and it is also a milestone to meet Mark & Daniel’s definition and expectation of “The Sound for Tomorrow” !
